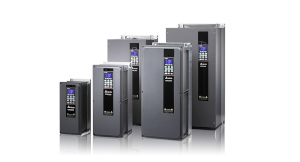

Delta’s CFP2000 series is an AC motor drive specially designed for HVAC, fans & pumps, and water treatment applications. It is designed with an IP55 enclosure to provide effective protection from dust and other particles and to offer a good level of protection from water. In addition, it includes many outstanding features and built-in functions that reduce setup and tuning time in operation and provide higher efficiency.
The CFP2000 is equipped with a built-in EMC filter and a DC choke. This design replaces the need for an electrical distribution cabinet and saves space for other devices, while providing the benefits of harmonic suppression and better power quality to the system. Various parameter groups are also included, which allow you to simply select the needed application in the parameter group setting and the system setup is ready. If a higher safety standard is required, an optional main switch function is also available upon selection. Other outstanding features include support for both IM/PM motors, a real time clock, built-in 10k steps PLC capacity and various optional extension cards. The CFP2000 series integrates all of your needs into one drive. It is the friendliest and smartest choice available in the industry. Read more in PDF
WHY CP2000?
Delta Industrial Automation Green Technology

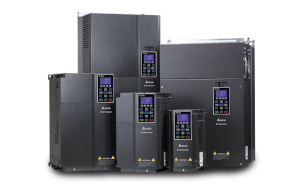

Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance. Read more in PDF

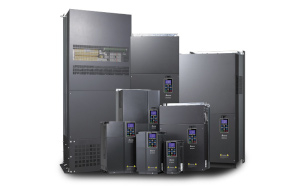

The C2000 Series AC motor drive provides the most efficient solution for all types of drive applications. It features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors. The C2000 Series is also equipped with built-in PLC functions and supports the CANopen Master/Slave extension for the ultimate in system flexibility and fast data exchange. Read more in PDF

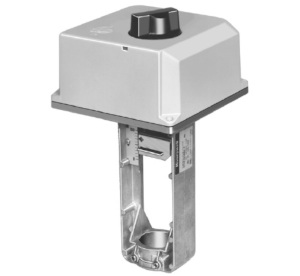

The ML6421A,B Non-Spring Return Electric Linear Valve Actuators are suitable for use with low-voltage, single-pole double-throw (spdt), Series 60 two-position and floating controllers. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications.
The ML7421A,B Non-Spring Return Electric Linear Valve Actuators are modulating control actuators used with controls that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in HVAC applications. An internal selector plug can be used to reverse
the direction of action.

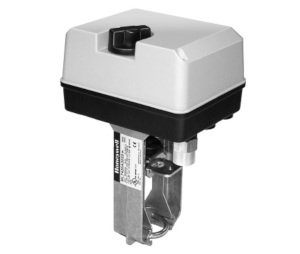

The ML6420 Non-Spring Return Electric Linear Valve Actuators are floating control actuators used with controllers that provide a switched or floating single-pole double-throw (spdt) output. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications.
The ML7420 Non-Spring Return Electric Linear Valve Actuators are modulating control actuators used with controllers that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in HVAC applications. An internal selector plug can be used to reverse the direction of action.

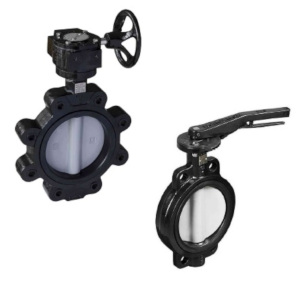

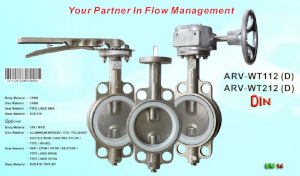

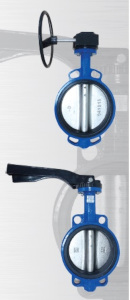

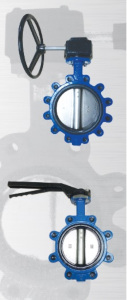

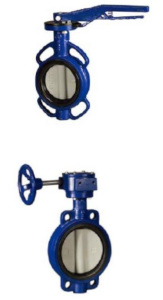

This V4 manual Butterfly Valve is designed for chilled & hot water applications, to be operated by lever or gear box.
Honeywell provide different End standard for V4 series butterfly valve, more detail please contact will Honeywell.

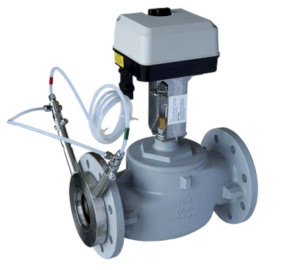

Honeywell Kombi-8F Series Flanged Pressure Independent Integrated Balancing Control Valve is a new generation product used for precise temperature control of terminal air-conditioning equipment in the HVAC system and an integrated product of linear temperature control, pressure independent and electric regulating.
Honeywell Kombi-8F Series can carry out the precise linear temperature control according to the thermal output features of the terminal equipment. Additionally, such control is pressure independent i.e., in the process of control, the flow of the terminal equipment is only affected by the temperature change in the air-conditioned area, instead of being affected by the pressure fluctuation of the water system. It can dynamically balance the pressure change of the system so as to ensure the flow of terminal equipment will not interfere with each other.
Honeywell Kombi-8F Series can also output variable differential pressure characteristics value signal to the system for the variable differential pressure control of the variable flow water system so that the air-conditioning water system can always operate in the most energy-saving mode.
Honeywell Kombi-8F Series Flanged Pressure Independent Integrated Balancing Control Valve is a kind of pressure independent, high-accuracy linear temperature-control two-way control valve, with the dimensions of DN65-DN150, which is composed of the ML-SBE Series super electric actuator component and flanged control valve. the super electric actuator component includes super electric actuator, pre-sensor, sampling straight pipe, special exhaust valve, three-way ball valve, three-way pipe and bypass hose etc.

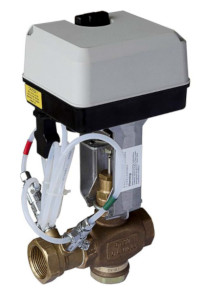

Honeywell Kombi-8T Series Threaded Pressure Independent Integrated Balancing Control Valve is a new generation product used for precise temperature control of terminal air-conditioning equipment in the HVAC system and an integrated product of linear temperature control, pressure independent and electric regulating.
Honeywell Kombi-8T Series can carry out the precise linear temperature control according to the thermal output features of the terminal equipment. Additionally, such control is pressure independent: ie. in the process of control the flow of the terminal equipment is only affected by the temperature change in the air-conditioned area, instead of being affected by the pressure fluctuation of the water system. It can dynamically balance the pressure change of the system so as to ensure the flow of terminal equipment’s will not interfere with each other.
Honeywell Kombi-8T Series can also output variable differential pressure characteristic value signal to the system for the variable differential pressure control of the variable flow water system so that the air-conditioning water system can always operate in the most energy-saving mode.
Honeywell Kombi-8T Series Threaded Pressure Independent Integrated Balancing Control Valve is a kind of pressure independent high-accuracy linear temperature-control two-way control valve, with the dimensions of DN25-DN50, which is composed of the ML-SBE Series super electric actuator component and Threaded control valve. The super electric actuator component includes super electric actuator pre-sensor, special exhaust valve, three-way ball valve, three-way pipe and bypass hose etc.

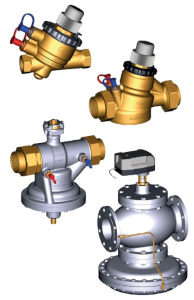

The V5004T Kombi-QM is a Pressure Independent Control Valve (PICV). It combines a flow controller and a full stroke, full authority temperature controller in one valve.
Equiped with an actuator Kombi-QM provides a full stroke modulating temperature control.
It is suitable for use in variable and constant flow systems. They may be used as constant flow limiter in constant flow systems (without an actuator) or as a Pressure Independent Control Valve
in variable flow systems.
V5004T Kombi-QM is typically used for balancing and temperature control of fan coil units, air handling units, chilled ceilings and one-pipe heating systems.

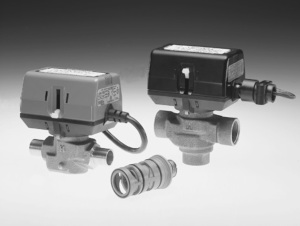

As a new type of product that controls the temperature of FCU in heating, ventilation and air-conditioning systems, honeywell dynamic balancing control valves integrate the functions of dynamic balancing and electrical switches in one body with great features including compact structure, high accuracy and stable operation.

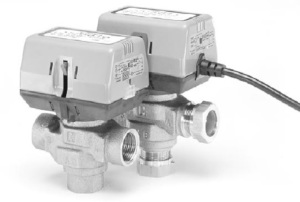

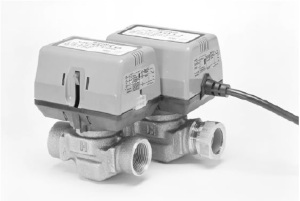

The valve consists of VC series electric actuator and VCB series dynamic balancing control valve.

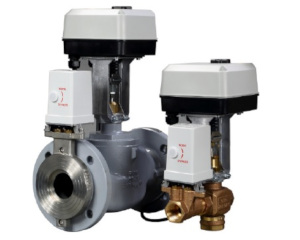

Honeywell Kombi-9 is designed for precise temperature control of terminal air-conditioning equipment in the HVAC system. It can maintain the flow regardless of variations in system differential pressure. With the valve position feedback the Building Automation System can always operate in the most energy-saving mode.

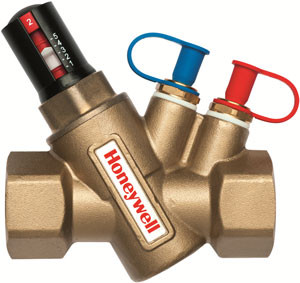

The V5003F Kombi-VX is an automatic balancing valve. It is designed for balancing of heating and cooling systems by providing a constant flow rate even under changing pressure conditions. The flow rate can be externally adjusted via pre-settings.

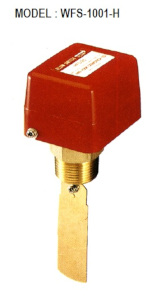

The paddle type SPDT WFS series are designed to provide excellent performance where accuracy, reliability, and rugged construction are required used in liquid flow lines carrying water or any fluid neither harmful to brass and prosphor bronze nor classified as a hazardous fluids.
They can be wired to close one circuit and open a second circuit when liquid flow either exceeds or drops below the adjusted flow rate. The WFS series are recommended for liquid pressure and temperature
as mentioned below and must not be used on lines carrying liquids below 0 /C.
These series may be used on liquids with high salt or chlorine content but is not for use in hazardous atmospheres. They may be also used outdoors but must be protected from weather or splashing water.
All series WFS flow switches are designed for use only as operating controls.
Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of user to add safety devices that protect against, or supervisory systems that warn of control failure.

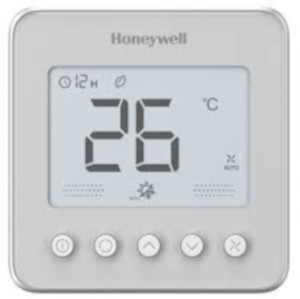

The TF428 series digital thermostat is designed for 3-speed fan and valve control in a fan coil system, including:
– 2-pipe cool only/heat only/manual changeover
– 4-pipe cool/heat manual /automatic changeover
– Ventilation mode
– Manual or automatic 3-speed fan control
– Water valve control
Besides the basic controls, TF428 series featuring CPH (Cycle Per Hour) better maintains the room temperature to the setpoint and Random Start-up Function would help to maintain power grid stability.
In addition, Honeywell Memorized Time Off Function can automatically turn off the thermostat to save energy.

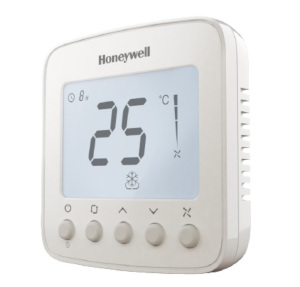

The TF228WN digital thermostat is designed for 3-speed fan and valve control in a fan coil system, including:
– 2-pipe cool only/heat only/manual changeover
– Ventilation mode
– Manual or automatic 3-speed fan control
– Water valve control
Besides the basic controls, TF228WN featuring CPH(Cycle Per Hour) better maintains the room temperature to the set-point and memorized time off function can automatically turn off the thermostat to save energy.
In addition, Honeywell Random start-up function would help to maintain power grid stability.

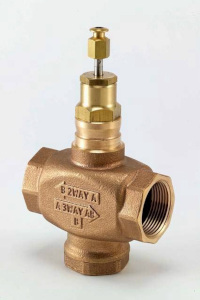

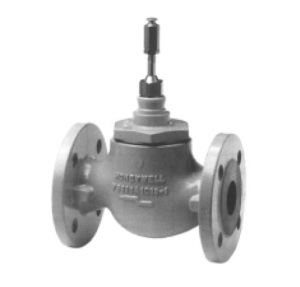

These single seated valves are used for modulating control of hot or chilled water or steam in heating, ventilating and air conditioning systems and can be operated by electric linear actuators as ML6421, ML7421, or by pneumatic actuators MP953.

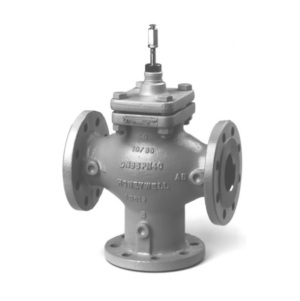

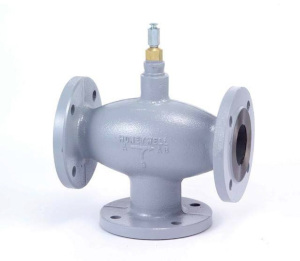

These three port mixing valves are used for modulating control of hot or chilled water in heating, ventilation and air conditioning systems and can be operated by electric linear actuators as ML6420/6425, ML7420/7425, M6421/7421 or by pneumatic actuators MP953.
These single seated valves are used for modulating control of hot / chilled water or steam in heating, ventilating and air conditioning systems. The valves can be operated by linear actuators ML6421B and M7L421B or by pneumatic actuators MP953.

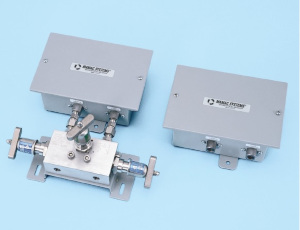

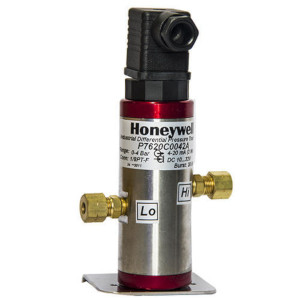

The P7620C ceramic cell differential pressure transmitters and transducers have been designed for most industrial pressure measurement applications at high quality performance and precision accuracy requirement including fluids and gases. The ceramic cell and metallic wetted parts can be compatible with majority of aggressive process fluids. The output signal of the sensing bridge is in converted to be a standardized current or voltage signal through surface mount technology circuit board. This high
level signal output with very low noise system is packaged in a rugged stainless steel housing to resist the harsh and extreme environment conditions.
Each transmitter is inspected and calibrated to ensure its 100% quality.

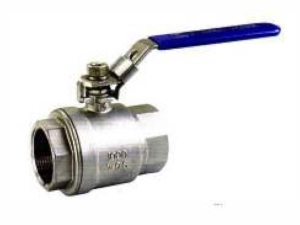

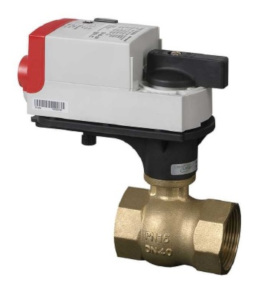

The VBA216-P series two-way threaded control ball valves are used for modulating control or on/off control in heating, ventilating and air conditioning
water systems.
These three-port mixing valves are used for modulating control of hot/chilled water or steam in heating, ventilation, and air conditioning systems and can be operated by electric linear actuators ML6420/ML6425, ML7420/ML7425, and M6421/M7421 or by pneumatic actuator MP953.

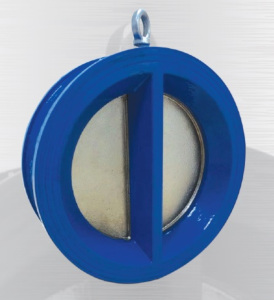

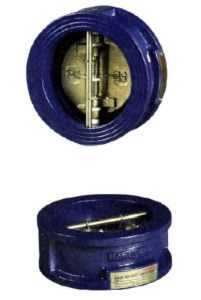

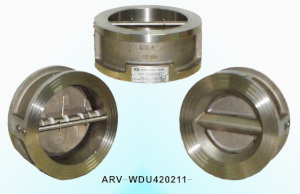

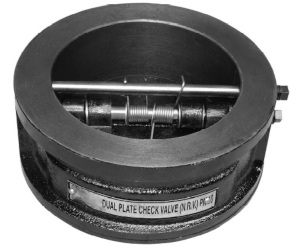

The BSV4-CWD Dual Plate Check Valves is designed for Chilled & Hot Water for purpose non-return valve that is stronger, lighter in weight and smaller in size as
compared to other Check valve.

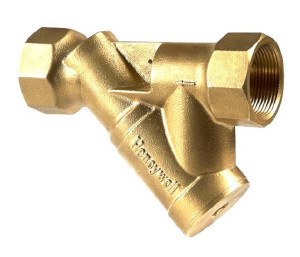

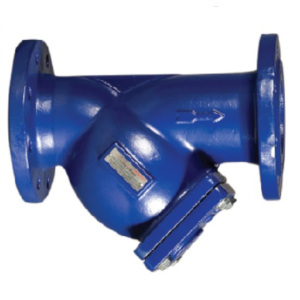

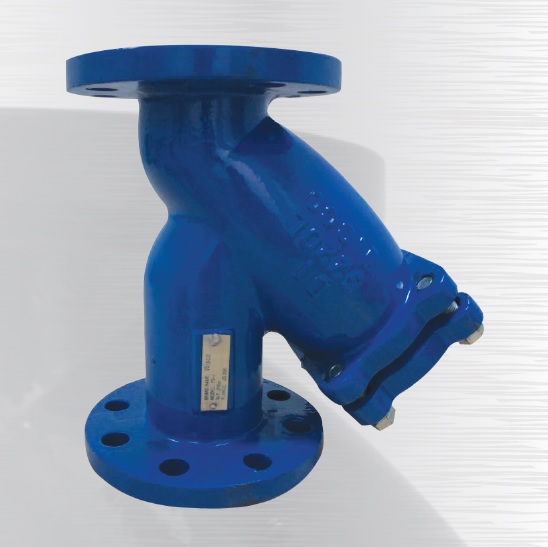

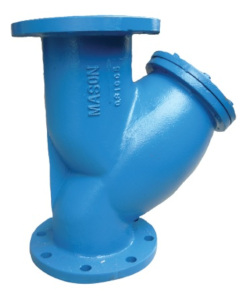

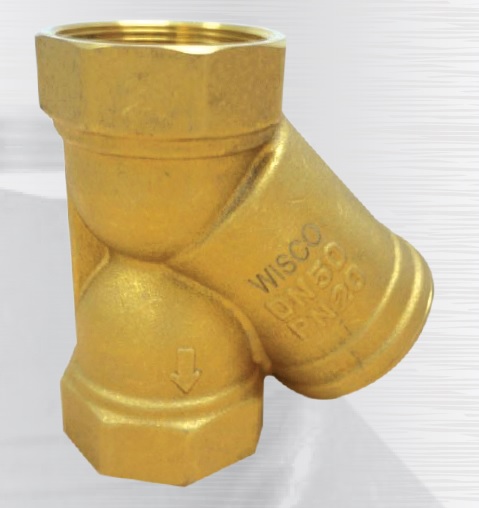

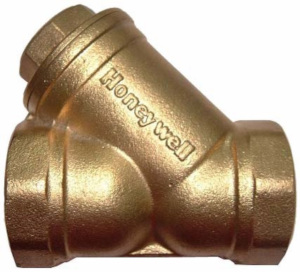

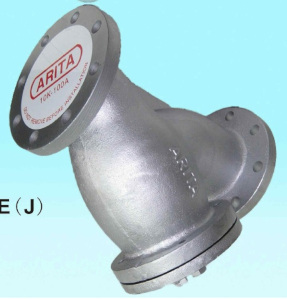

Honeywell Y-type strainer is widely used in water application and is used for protecting valve and other equipments from scrap and impurities in the system

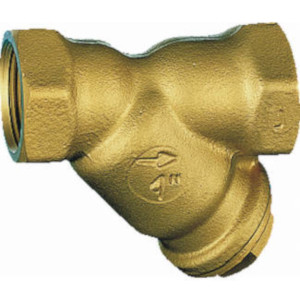

FY30 strainers are used in commercial and industrial applications within the limits of their specifications.
They protect systems against malfunction and corrosion damage resulting from the ingress of foreign bodies such as welding beads, sealing materials, metal cuttings and rust etc. This extends the life of the downstream system and prevents early failure.

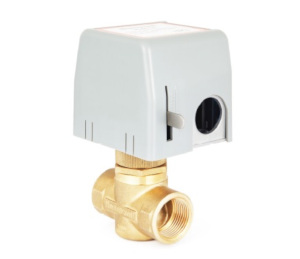

The VS series valves with spring return function are used in HAVC system to control the flow of hot and/or cold water, treated water (Max.50% Glycol Solutions) applications are also permissible.
VS valve is one type of control valve that can do on/off control refer to customer’s demands. The actuator has the special function that if the power is off, the valve will return to original position by spring. This is a safe and energy saving function to customers.
In addition, this valve is capable of handling greater differential pressures without water-hammer. Recommended thermostat including T6818, T6800, T6820 and T6861 series
Note:
This Series Products are not fit for dissolved oxygen application.

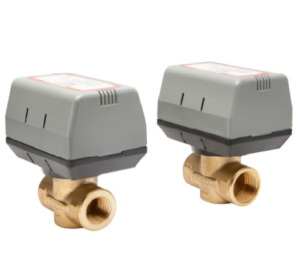

Honeywell VN Series 2-position on/off valves are used in domestic and small commercial heating and cooling applications to control the flow of hot and/or cold water. They consist of an actuator and valve assembly
They can be used to control individual fan coil, radiator, space heater or convector applications. Depending on the model selected they can be controlled by a SPST or SPDT controller such as a room thermostat, aquastat or flow switch.
Note:
This series products are not fit for dissolved oxygen application.

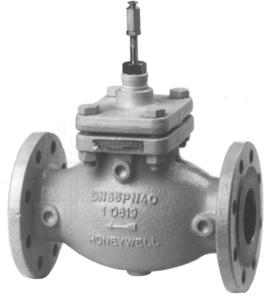

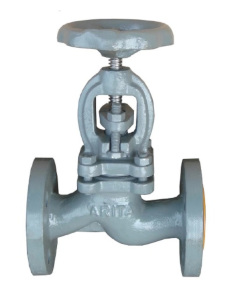

Single seated control or shutoff valve for:
• hot water • saturated steam
• chilled water • superheated steam
• Domestic Hot Water
in Heating, Ventilating, Air Conditioning Systems
Open Circuits
To be operated by
• electric linear actuators as
ML 6420 / 25
ML 7420 / 25
M 6421
M 7421

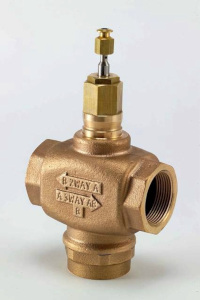

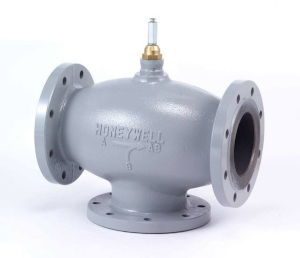

Three port mixing control valves for:
• hot water • chilled water
• Domestic Hot Water
in Heating, Ventilating, Air Conditioning Systems,
Open Circuits
To be operated by
• electric linear actuators as
ML 6420 / 25
ML 7420 / 25
M 6421
M 7421
These single seated valves are used for modulating control of hot / chilled water or steam in heating, ventilating and air conditioning systems.
The valves can be operated by linear actuators ML6420/ML6425 or ML7420/ML7425 or by pneumatic actuators MP953.

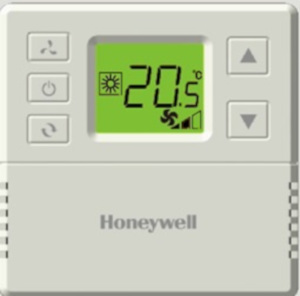

T6818DP08 digital thermostats are designed for application of 3-speed fan and valves in 2-pipe fan coil system.
Including:
– 2-pipe cool only/heat only/manual changeover between heat and cool
– Ventilation mode
– Manual 3-speed fan control

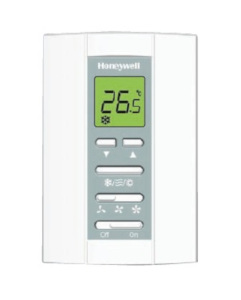

T6811 /6812 digital thermostats are designed for application of 3-speed fan and valves in 2-pipe fan coil system.
Including:
– 2-pipe cool only/heat only/manual changeover between heat and cool
– Ventilation mode
– Manual 3-speed fan control
– Water valve control
In ventilation mode, fan only support manual speed control.
The contractor shall furnish, install, and place in operating condition, an HVAC control system
described herein. All units shall be located in accordance with the plans.
Monitor filter, fan or air flow status of air handling units
Read more in PDF

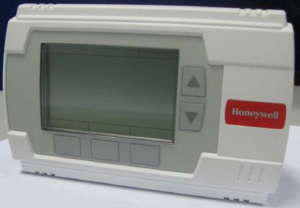

The UB series stand alone controllers are intended for Heating, Ventilating, Air-Conditioning and Refrigeration in comfort control. It can be used to control temperature, humidity and so on. Built-in multiple application programs are selectable. Modulating output with 0…10VDC, 2…10VDC or 4…20mA signal output. Support DIN and Panel installation. Read more in PDF

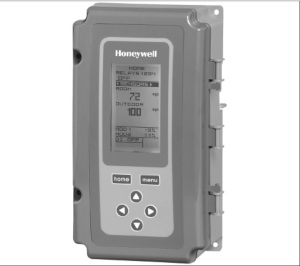

The T775 electronic stand-alone controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
IMPORTANT
The T775 is an operating control, not a limit or safety control. If used in applications requiring safety or limit controls, a separate safety or limit control device is required. Read more in PDF

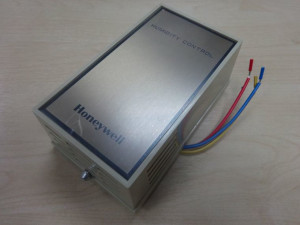

The H600A Humidity Controller has spdt switching to operate humidification equipment on RH fall or dehumidification equipment on RH rise (or for mildew control with air conditioning systems). All models have a locking cover, the setting knob actis as cover removal tool.Read more in PDF
CS42XX, CS75XX, CS81XX Spring Return Direct Coupled Actuators (DCA) are used within heating, ventilating and air conditioning (HVAC) systems They can drive a variety of quarter-turn, final control elements requiring spring return fail-safe operation. Read more in PDF

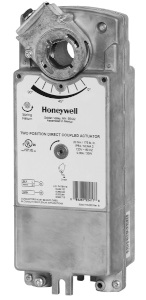

The MS4120F, MS4620F, MS8120F, S2024-F and S20230-F Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for on/off damper control. The actuator accepts an on/off Signal from a single-pole, single-throw (spst) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Designed to operate reliably in smoke control systems requiring Underwriter’s Laboratories Inc. UL555S ratings up to 350°F

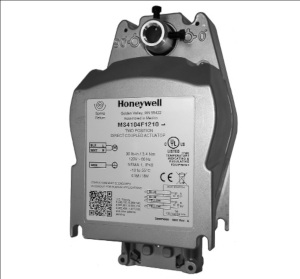

The MS4104, MS4109, MS4604, MS4609, MS8104, MS8109 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) with an integral junction box for on/off damper control. The actuator accepts an on/off signal from a single-pole, single-throw (spst) controller. reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring return and are designed to operate reliably in smoke control systems requiring underwriter’s Laboratories Inc. UL555S ratings up to 350 °F.
Read more in PDF

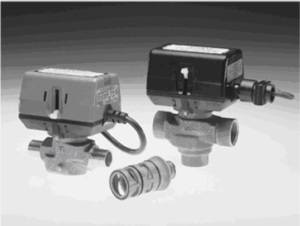

The VC4043 series Spring Return Valves are used in Heating and Air Conditioning systes to control the flow of the heat transfer fluid. The fluid is typically hot or cold water, however treated water (Max. 50% Glycol Solutions) applications are also permissible.
Spring return VC valve is one type of control valve that can do precise control refer to customer’s demands. Spring return actuator has the special function that if the power is off, the valve will return to original position by spring. This is a safe and energy saving function to customers.
In addition, this valve is capable of handling greater differential pressures without water-hammer.
Read more in PDF

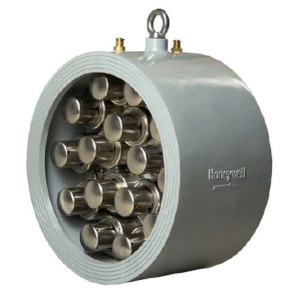

Honeywell “ConF V5” series dynamic balancing valve is designed for constant flow control in HVAC hydronic system. It keeps the flow constant within the specified working differential pressure range when system pressure fluctuates.
“ConF V5” series constant flow rate balancing valve is a self-balanced flow control valve used in 2-way controls for sizes from DN50-DN500.
FEATURES
• In this balanced valve design, the cartridge in the valve moves up and down automatically to maintain constant flow when there is system pressure fluctuation
• Every loop automatically limited to design flow
• Robust design save installation space.
• Simplified pipe design and calculation
• Quick and easy setup
• No balancing debug work required
• Stainless steel valve stem resists corrosion & thus the valve has a long service life
Honeywell “ConF V2” series dynamic balancing valve is designed for constant flow control in HVAC hydronic system. It maintains flow constant within the specified working differential pressure range.
“ConF V2” series balancing valve is a self-balanced flow control valve used in 2-way controls for sizes from DN15~DN40.
FEATURES
• In this balanced valve design, the cartridge in the valve moves up and down automatically to maintain constant flow when there is system pressure fluctuation
• Every loop automatically limited to design flow
• Robust design save installation space
• Simplified pipe design and calculation
• Quick and easy setup
• No balancing work required
• Stainless steel valve stem resists corrosion & thus the valve has long service life

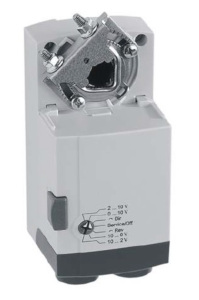

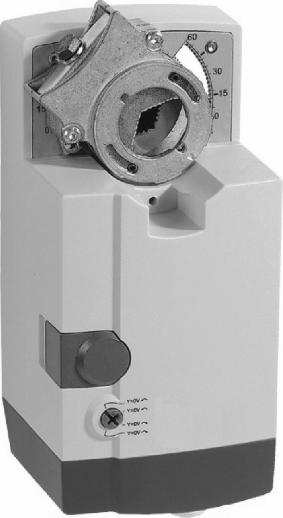

These direct-coupled damper actuators provide modulating control for:
· Air dampers
· VAV units
· Air handlers
· Ventilation flaps
· Louvers, and
· Reliable control for air damper applications with up to 4.6m2 / 50 sq.ft. (20 Nm / 177 lb-in) or 7.8m2 / 85 sq. ft. (34 Nm / 300 lb-in)(seal- less damper blades; air friction-dependent)
FEATURES
· New self-centering shaft adapter
· Access cover to facilitate connectivity
· Declutch for manual adjustment
· Mechanical end limits (CN7220 only)
· Field-installable auxiliary switches
· Rotation direction selectable by switch
· Mountable in any orientation (no IP54 if upside down)
· Mechanical position indicator

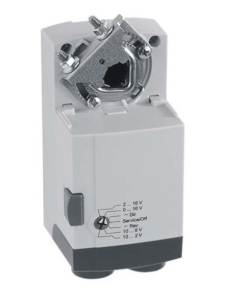

This non-spring return direct-coupled damper actuator provides floating and two-position control for:
• air dampers,
• VAV units,
• air handlers,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 10 sq ft / 44 lb-in. (5 Nm) and 20 sq ft / 88 lb-in. (10 Nm) (seal- less damper blades; air friction-dependent).
The hydronic balance is a significant requirement for the efficient operation of a hydronic heating or cooling installation. In an unbalanced system under or over provision of hot water to individual radiators or circuits can occur. Apart from the
correct selection of radiator valves, regulation of individual circuits is also necessary and in some cases, such as in DIN 18 380, VOB part C, is required by national standards. This requirement is met with the shutoff and balancing valve
Kombi-2-plus. The Kombi-2-plus for the return has the functions shutoff, pre-setting, regulation (with diaphragm unit, accessory), draining and filling (draining adapter, accessory).
Features
• Maintenance free spindle with double O-ring sealings
• PTFE seat sealing
• High accuracy of the pre-setting because of individual adjustment
• Valve body PN16
• Dimensions DN15 to DN40 can be retrofitted with a Kombi-Diaphragm Unit
• Robust valve body made of corrosion resistant red bronze
• Availabe in sizes up to DN80
• Visible pre-setting dial with concealed pre-setting wheel

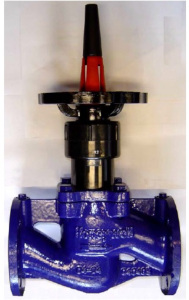

The hydronic balance is a significant requirement for the efficient operation of a hydronic heating or cooling installation. In an unbalanced system under or over provision of hot water to individual radiators or circuits can occur. Apart from the correct selection of radiator valves, regulation of individual circuits is also necessary and in some cases, such as DIN 18 380, VOB part C, is required by national standards. This requirement is met with V4 Kombi shutoff and balancing valves. V4 Kombi have functions shut-off, pre-setting and measuring.
Features
• Balancing through stroke limitation with digital pre-setting and visible pre-setting indicator
• Equipped with 2 pressure test cocks for differential pressure measurement
• Non rising spindle with EPDM and EPDM O-ring sealing
• Pre-setting isn’t altered when handwheel is turned
• Regulation screw protected by protection cap
• PTFE seat sealing
• Valve cartridge and spindle made of cast steel
• Available in dimensions up to DN400

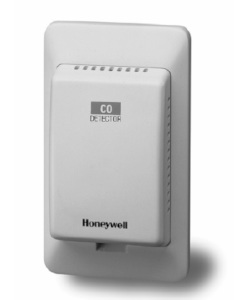

GD250W3E/4E is IAQ(Indoor Air Quality) sensor, which has been designed to detect carbon monoxide gas in the air. This model has high accuracy at low concentration, so it optimum for parking lot, tunnel and under ground places. Also, the advantage of this model is compact size and easy installation. Read more in PDF

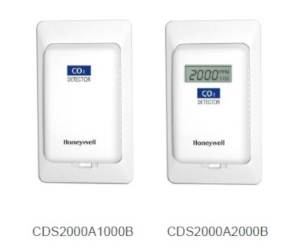

CDS2000 is IAQ(Indoor Air Quality) sensor, which is designed to detect carbon dioxide gas in the air. This model has good resolution by NDIR method, so it is a optimum device for ventilation of building, house, etc. Also, the advantage of this model is compact size and easy installation.
Note. Do not apply this product for use where a building is continuously occupied 24 hours per day.
Read more in PDF

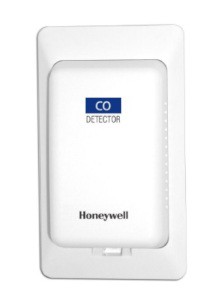

GD250W4NB is IAQ(Indoor Air Quality) sensor, which is designed to detect carbon monoxide gas in the air. This model has high accuracy at low concentration, so it is optimum for parking lot, tunnel and under ground places. Also, the advantage of this model is compact size and easy installation. Read more in PDF

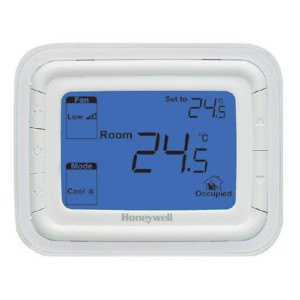

T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system.
Including:
– 2-pipe cool only/heat only/manual changeover
Ventilation mode
Manual or automatic 3-speed fan control modulating valve control
– Fan speed can be selected to automatic or manual 3-speed control mode.
– In ventilation mode, fan only support manual speed control.

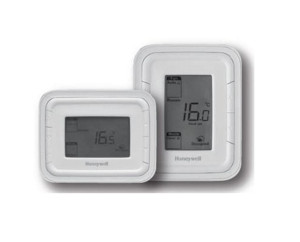

T6861 digital thermostats are designed for application of 3-speed fan and valves in fan coil system.
Including:
2-pipe cool only/heat only/manual changeover and
4-pipe manual or automatic changeover Ventilation mode Manual or automatic 3-speed fan control
Water valve control
Fan speed can be selected to automatic or manual 3-speed control mode.
In ventilation mode, fan only support manual speed control.

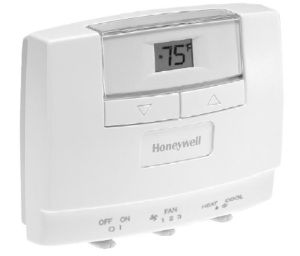

The T6571 Digital Thermostats are designed to provide Proportional-Integral (PI) modulating control in zoned commercial Heating, Ventilating, and Air Conditioning systems such as hydronic heating and/or cooling, pressure dependent VAV or by-pass box with or without terminal reheat.
The T6571 family provides modulating analog 4 to 20 mA or 2 to 10 Vdc control. Other available features include energy savings card key input, auto-detection of temperature sensor
(remote sensor or internal sensor), and optional Celsius or Fahrenheit operation.
Heat/Cool models are available with constant fan operation. Models are available with either a three-speed fan selector switch with low, medium and high settings, or one-speed only.
On models with system on/off switch, the fan can be powered off.

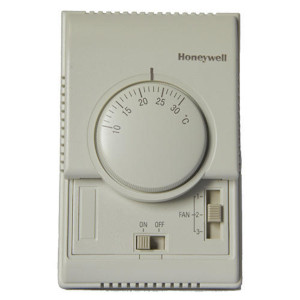

The T6372 and T6373 are designed to control the valve, or the valve and the fan in 2-pipe fan-coil applications.
The thermostat operates an on/off valve to provide control at the desired setpoint temperature.
The fan can also be controlled from the thermostat. In some cases it is wired to run continuously, and can be switched off with the system ON/OFF switch, while with other models there is a choice of running the fan continuously, or cycling it with the thermostat.
Versions are available with a manual 3-speed fan switch, and with a system on-off switch.
Heat/cool changeover operation is also possible on some versions. This function can be accomplished either by a manually operated heat/ cool switch on the front of the thermostat or in some versions automatically by the use of a pipe thermostat on the supply water pipe of the fan-coil.
The T4360/T6360 range of thermostats are designed to provide automatic ON/OFF control for gas valves, circulation pumps, relays and zone valves in all heating, cooling, or heating/cooling installations where single or changeover switching up to 10 A (resistive load) or 3 A (inductive load) is required.
In addition a 16 A (resistive load) variant is available for direct switching of high current carrying loads.
Nine models of the thermostat are available, in a wide range of feature combinations.
The T7470A1009 is equipped with a 20 kΩ NTC space-temperature sensor and can be directly wired to the following Honeywell controllers:
W7750A,B
W7751B,D,F,H
W7752D,E,F,G
W7753A
W7761A
W7762A,B
W7763C,D,E
Excel 600, 500, 100, 80, 50, 20.
Please refer to the technical specifications of the individual controllers in order to determine their suitability for use in conjunction with a given sensor application.
The H7015A Duct Humidity Sensor is a capacitance-type relative humidity sensor for duct mounting.
The H7015B Combined Humidity / Temperature Duct Sensor combines a capacitance type relative humidity sensor with a Pt 1000, BALCO 500 or 20kΩ NTC temperature sensor in one housing.
These sensors can be used
• for discharge, outside or return air control
• as high limit sensor e.g. for steam humidification
The C7600A,C Solid State Humidity Sensors sense relative humidity in air and are used with controllers that can process a 4 to 20 mA signal. Read more in PDF
The C7041 Electronic Temperature Sensors are designed to be used with electronic controllers in domestic or commercial heating and cooling systems. Read more in PDF
The 50014157-001 temperature sensor is designed for use with Honeywell’s TB6980/TB7980 thermostats to measure the temperature inside an air duct or air chamber. It can be also used in various other applications. Read more in PDF
The P7620A industrial pressure transmitters/transducers are ideal for general purpose industrial applications with considering the performance, reliability and cost. The output signal of the sensing bridge converts to a standardized current or voltage signal through surface mount technology circuit board. This high level signal output with very low noise system is packaged in a rugged stainless steel housing to resist the harsh and extreme environment conditions. Each transmitter is inspected and calibrated to ensure its quality. Read more in PDF
These two position 3 way hydronic valves are intended for use in a normal indoor environment to control the flow of hot and/or cold water, or glycol solution to 50% concentration. They consist of an actuator, valve and replaceable valve cartridge assembly. These valves can be piped for either diverting or mixing valve applications in central heating and/or cooling systems; or for individual fan coil, radiator or convector applications. Depending on the model selected they can be controlled by either a low or line voltage SPST OR SPDT controller such as a room thermostat, aquastat or flow switch. Read more in PDF
These 2-position (open/closed) hydronic valves are intended for use in a normal indoor environment to control the flow of hot and/ or cold water, or glycol solution to 50% concentration. They consist of an actuator, valve and replaceable valve cartridge assembly. These valves are designed for on-off “zone” control of heating/cooling systems, or to control individual fan coil, baseboard radiator or convector applications. Depending on the model selected they can be controlled by either a low or line voltage SPST or SPDT controller, such as a room thermostat, aquastat or flow switch.
The VC7900 Series Modulating Control Valves provide optimum control of hot and/or chilled water flow in various heating and cooling applications.
The VC hydronic valve consists of a valve body and replaceable characterized cartridge assembly. When used with a Honeywell VC7900 actuator, the valve provides proportional flow in either diverting or mixing applications. They are designed to provide sinusoidal valve actuator travel, and therefore operate silently and resist water hammer. The VC7900 series valve actuator is used with any 0-10 Vdc controller. Read more in PDF
This non-spring return direct-coupled damper actuator provides modulating and floating/2-position control for:
– air dampers
– VAV units
– air handlers
– ventilation flaps
– louvers and
– reliable control for air damper applications with up to 10 sq ft/44 lb-in. (5 Nm) and 20 sq ft/88 lb-in. (10Nm) (Seal-less damper blades, air friction-dependent)
Suitable for Water Services, Heating and Air Conditioning Plants, Compressed Air Systems.
Wisco SP600 series stainless steel casing oil filled pressure gauge is designed for use in corrosive service where ruggedness and reliability are critical. Typical applications include chemical, petroleum refineries, pharmaceutical, offshore drilling and etc. Read more in PDF
Wisco PG500 series features a low cost and high quality pressure gauge is compactly designed, suitable for non-corrosive fluid (air, oil, gas or water services) Read more in PDF
Wisco glass tube thermometer is compactly desinged, ruggedly constructed and is widely used in HVAC and other industrial applications. This gold-coloured aluminium case thermometer is available in 6″ (150mm) scales. A brass socket 1/2: BSP is standard (st. steel optional) and the thermometer is available in either a straight model (bottom conn.) or 90 angle model (back conn.) Read more in PDF
Foshan AKE Electronic Engineering Co., Ltd. founded in 1997, is a high-tech enterprise with data acquisition and information processing as its core technology. The main products AKE has are Network Thermostat System, BTU Measurement System. Building Energy Management System, Parking Guidance System and Urban Parking Guidance System.
AKE has obtained 6 patents and pass ISO9001:2000 Quality Management System in 2005. By the end of 2010, AKE has made over 800 projects all over China and gets high appraisal from local and overseas customers. The culture AKE pursues is Innovation, Pragmaticism, Dedication and Development.
Customer-oriented, AKE pursues maximum customer satisfcation by providing efficient service throughout the whole cooperation. We can say that AKE would make a promising and trust-worthy partner in your business. Read more in PDF
Innovative solutions from Frese balance global HVAC systems accurately and efficiently. From cooling systems in the Middle East to heating system in Scandinavia, our products transform state of the art technology into everyday solutions.
Over 25 years’ experience producing dynamic balancing solutions, has positioned Frese as the leading manufacturer of energy saving valves and through our commitment to innovation, we continue to be at the forefront of technological advancements in our areas of expertise.
To support our products, the knowledge, experience and dedication of our employees and partners ensure our solutions are applied correctly to maximise savings and position Frese as the authoritative voice for pressure independent and dynamic solutions. Read more in PDF
The type 604 pressure switch is used as a ΔP flow switch in ventilation ducts for the control of filters and fans, and in primary and secondary control systems for the control of air dampers.
The 604 pressure monitoring switches are also ideally suited to protect heating coils from overheating and for monitoring industrial air cooling circuits. Medium: air and non-corrosive gases. Read more in PDF
The type 699 transmitters are available in switchable pressure ranges and with or without digital device. The full-version includes customer specific adjustment possibilities. Especially developed sensors for each pressure range ensure accurate long term stable measurement and the large variety of options provide the perfect platform for use in air conditioning technology as well as for fine measurement in the industrial and medical environment.
– Fast, easy mounting. Housing incorporates integral bracket for wall or ceiling mounting
– Available with or without LCD display
– Adjustable measurement range
– Switchable output signals
– Switchable response curve (linear or root-extracted)
– Resettable Zero Point (Reset Button)
– Full scale adjustable
– Attractive price / performance ratio
– Application at over and low pressure range possible
1. FS80-C Flow Switch responds to fluid flow in lines carrying water, ethylene glycol or other Non-hazardous fluids
2. FS80-C Flow Switch uses a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1-inch trade size
3. Single-Pole, Double-Throw (SPDT) flow switch that can be wired to energize one device and de-energize another device powered from the same source when liquid flow either exceeds or drop below the set flow rates.
Read more in PDF
The P74JA differential pressure control is commonly used on water systems to control a pressure differential between supply and return lines. The control’s SPDT floating action contacts position a motor actuated valve operated by a Johnson Controls M81 or Series M100A motor actuator. In atypical application the valve is located in a bypass line around the system pump. When the system pressure differential increase above the control’s set point, the valve opens further. More water is diverted through the bypass valve resulting in a reduction in system pressure differential. A reduction in the pressure differential causes the valve to begin closing and reuslts in an increase in system pressure differential.
The P74JA is suitable for use on other air or liquid pressure differential applications where SPDT non-snap acting switching is desired.
All Series P74 differential pressure controls are designed for use only as operating controls. Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of the installer to add devices (safety, limit controls) or systems (alarm, supervisory systems) that protect against, or warn of, control failure. Read more in PDF
The PR-282 is an all stainless steel, 100% solid state wet/wet differential pressure transducer incorporating dual diffused piezoresistive sensing elements with stainless steel media isolation. The unit is compatible to all media encountered in HVAC applications including freon, ammonia, treated water and steam. PR-282 is designed to monitor and control pump differential pressure, CW/HW system differential pressure, chiller/boiler differential pressure drop, among other applications.
– 100% solid state diffused piezoresistive silicon wafers
– Rugged all stainless steel pressure cavities; Unique “Double D” port design
– No nulling valve required; Extremely stable and sensitive
– More than four supply voltage and output options; Direct or reverse output option
– Electronic averaging/snubbing option; Precision output clipping option
– Easy access NEMA 1 enclosure; Immune to thermal shock, surge or vibration
– All welded dual sensor assembly; Two year warranty
– Guaranteed compatible to all control systems
Read more in PDF
The PR-283 incorporates sophisticated integrated circuits and new fused silicon monolithic cavity pressure sensors to not only provide a high level, fully conditioned and temperature-compensated output, but also to offer up to three (3) field selectable pressure ranges in one unit. The field selectable feature eliminates costly inefficiencies by providing a single unit which can be configured to cover all the pressure ranges for a particular application: for instance, 25.0, 50.0 and 100.0 psid in one unit. The 17-4 PH SS monolithic pressure cavity not only provides media compatibility for most of the applications, but also offers a leakproof solution for today’s environmentally conscious customers. Two industry standard output versions are available: 4-20 mA 2-wire loop or field electable 0-5 VDC/0-10 VDC. A wide 12-40 VDC or 12-35 VAC unregulated supply voltage and a broad 0°F – 180°F compensated temperature range ensure compatibility to most of the applications. A rugged NEMA-4 (IP-65) enclosure, gasketed cover, external mounting bracket, fully temperature-compensated NIST traceable accuracy and a liberal two year warranty are some of the features which make the PR-283 the industry’s most reliable, rugged, and economical pressure transducer. A 316 SS three-valve isolation/nulling manifold (VM-705) is also available to be field installed without any piping interconnecting the two, thereby significantly reducing installation costs. Baird House, Units 6 & 7 Pensnett Estate • Kingswinford West Midlands • DY6 7YA • United Kingdom 01384-271113 • Fax 01384-2711144 Armiger Court, Unit 2 Holden Hill • S. A. 5088 • Australia 08-8395-4333 • Fax 08-8395-4433 155 McIntosh Drive, Unit 5&6 • Markham Ontario • L3R 0N6 • Canada 905-474-9215 • Fax 905-474-0876 No. 22 Lorong 21A Geylang #11-02 Chin Hin Hang Building Singapore • 388421 65-392-7273 • Fax 65-392-7276 DN283.1 © Copyright 2003 ® Registered Trademark MAMAC SYSTEMS, Inc. Printed in USA 7400. Read more in PDF
TE703/704 temperature sensors offer the industry’s most extensive range of enclosure, installation and sensor types to satisfy all HVAC, industrial and commercial applications. These revolutionary sensors incorporate more than twenty five years of product development and experience dwawn from millions of installations world wide in all types of applications. This product and process design combined with automated manufacturing process yields a rugged, reliable, repeatable and stable temperature sensor at a low cost. The only line of temperature sensors offering lifetime warranty against moisture migration related failures.
For large volume OEM customers, TE-703/704 temperature sensors are available in many custom configurations. Wire type, length or gage, terminals, connectors, probe lengths, enclosures options or sensor types may be customized based on volume.
AV Type Air Vent Valve is a universal type with large venting capacity. It can be used up to 10kgf/cm. Large working pressure range than that of the conventional air vents offers wide range of use from low pressure to high pressure.
Anti-corrosion treatment provided to the inside prevents the valve from rusting. As the disc is free operating construction, air tightness is superior. Read more in PDF
Arita Cast Iron Y-Strainer is a devices which provides a mean to remove debris from a flowing fluid in a pipeline. A perforated screen or mesh is used to trap the debris in the strainer chamber. The strainer chamber is designed with a plug or cover that can be easily removed for maintenance purposes. The Y-Strainer can be installed either in horizontal or vertical down position and must be always before the valve or equipment. Read more in PDF
Arita ball valves bodies are of 2 piece design. the stainless steel bodies are investment cast to provide high quality finishing and strength. The full port design minimizes pressure drops scross the valve and gives smooth flow characteristics. There are options for ball seat materials, namely PTFE, RPTFE, PPL and PEEK that allow the valves to be employed in environment above 300 degree Celsius. Others features incorporated are blowout proof stem, adjustable stem packing, low operating torque and lockable handle. This product is suitable for general and industrial applications. Read more in PDF
The compact design of dual plate wafer check valves gives it the advantages over other check valves in size, weight, cost, ease of installation and maintenance. The construction of the valves is simple and reliable. The plates function independent of each other and the stainless steel torsion springs shut the valve quickly to minimize reversal flow and prevent water hammer. It requires only a low force to open the plates, hence, minimize the pressure drop across the valve. In shut position, the plates rest on resilient seat which provides good sealing. Read more in PDF
I-Tork controls designs, produces and provides high quality actuators and services related to valve automation.
Our long years experience in the automation field enables us to launch our ITQ series electric actuator which has compact size, robust construction, reliable performance and ability to integrate fully into sophisticated control system.
I-Tork controls is always ready to provide you with our ITQ series actuator and accessories with quality service.
Very compact coverter supplied by 4/20 mA (two wire); digital output and input for pulses and alarm.
DOUBLE-LIN ball valves are bottom loaded stem designed. This “anti-blow-out” stem also prevents tampering with the internals of the valve when in the line.
DOUBLE-LIN ball valves hava a doubel seal with elastic O-Rings, chosen for their high resistance to ageing. Perfect seal at low and high pressure and wear resistant, solid and reliable for life-time use. Read more in PDF
